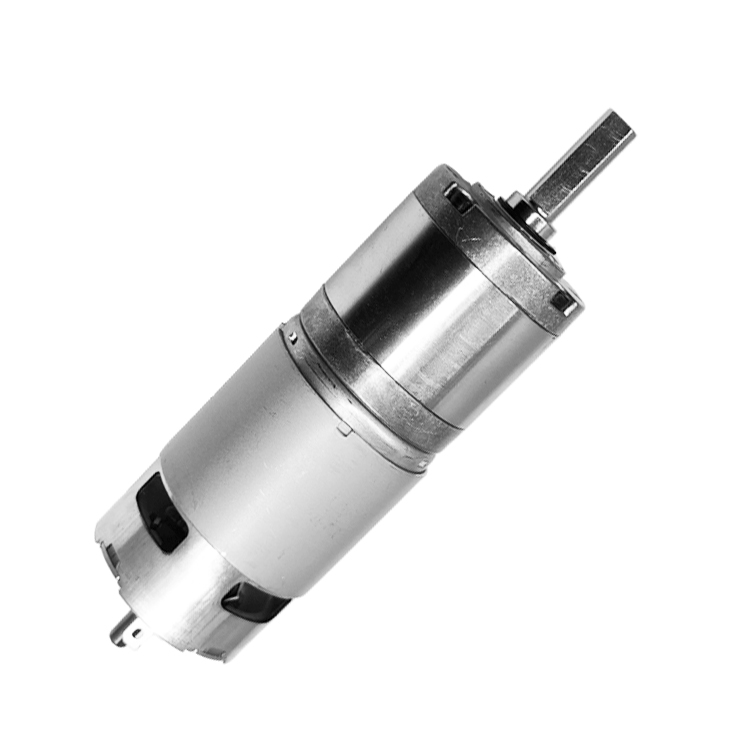

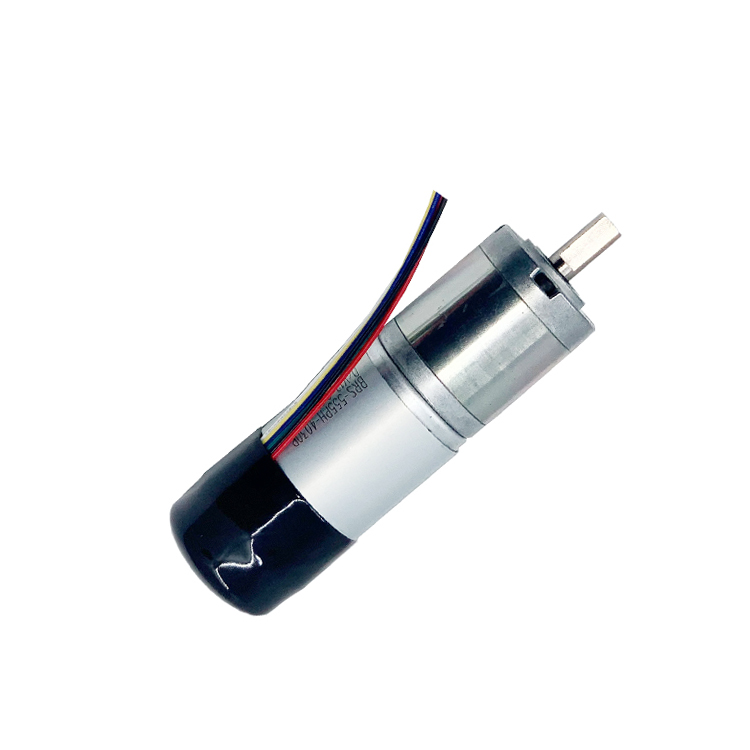

PFM-35P DC

Classification：Brushed DC Planetry Gear Motor

Note: The rated torque in the table is the product of dc motor rated torque,gearbox ratio and efficiency, rather than gearbox rated torque. The highest torque of gearbox refers to max stage short time torque. At rated torque, the gearbox generates reliable output performance, however, the life time shall subject to the real working cycle condition in the site(for example, at the same rated torque, the slower the speed, the slower the wearing out and the longer the life time.

Customized motor specs, shaft and encoder service is available.

Consult

National Service Hotline：

0755-21000751

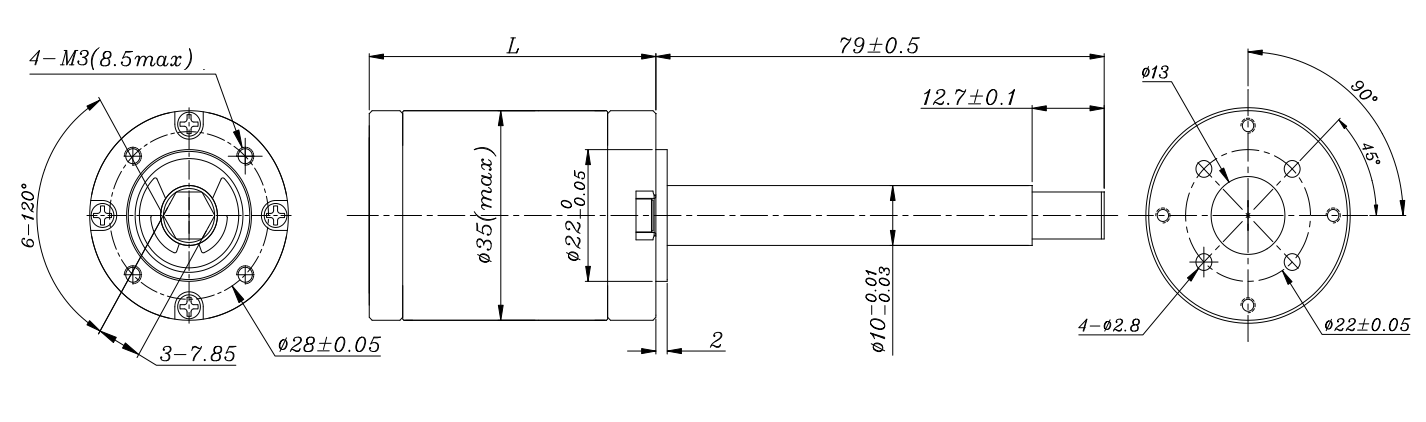

Gearbox

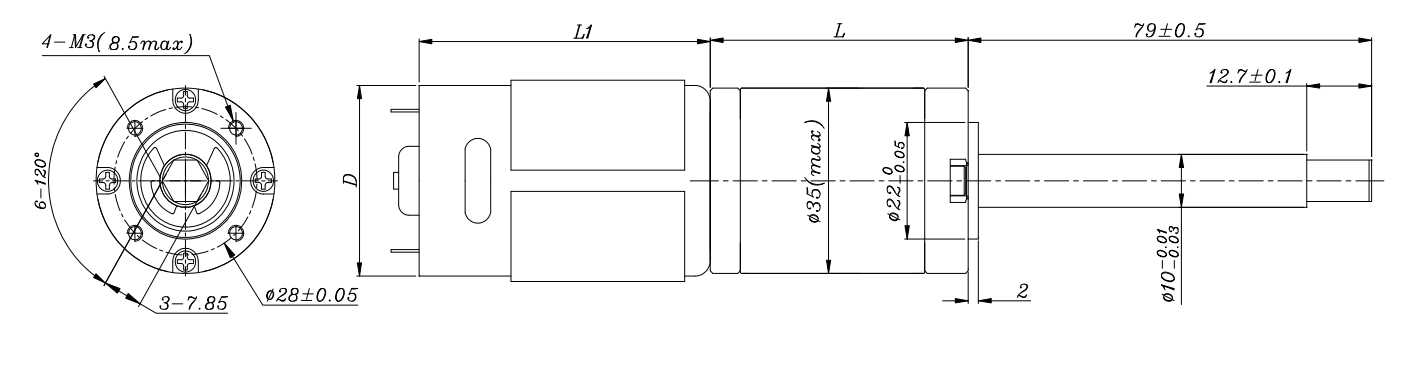

Motor Page

General Technical Parameters of Gearbox

No.:	ITEM	Material & Processing Technology
1	Ring Gear	S45C
2	Pinion	S45C
3	Planet Carrier	Power Sintered
4	Planet Gear	Power Sintered
5	Output Shaft	S45C
6	Install Flange	Aluminium Alloy /SUS304
7	Connection Plate	Aluminium Alloy /SUS304
8	Gear Kind	Spur Gear
9	Type of Box	NGW Planetery Gearbox
10	Diameter	φ36mm
11	Modulus	M=0.5
12	Stages Available	1.2.3.4.5
13	Bearing Type	Sleeve, Ball Bearing
14	Max Radial Force	≤150N
15	Max Axial Force	≤80N
16	Axial Play	0.3mm Max
17	Radial Play（10mm from Flange）	0.05 Max
18	No Load Backlash	≤2.0°
19	Operation Temperature Range	-20℃~80℃（Can be Customized）
20	Operation Relative Humidity	20%RH~90%RH
21	Protection Level	IP54(Without Motor）
Note: Gearbox can be customized according to the requirements

Reduction Ratio

Stage	Ratio（X：1）			Length	Rated Torque	Short time Torque	Efficiency Max.
1	3.67	4.2	5.00	26.5	0.5~2.5kg.cm	6kg.cm	94%
2	13.44	15.40	17.64	34.5	0.5~10kg.cm	25kg.cm	88%
2	18.33	21.00	25.00	34.5	0.5~10kg.cm	25kg.cm	88%
3	49.30	56.47	64.68	42.5	0.5~30kg.cm	60kg.cm	83%
	67.72	74.09	77.00
	88.20	91.67	105.00
	125.00
4	180.76	207.05	237.16	50.5	0.5~35kg.cm	80kg.cm	78%
	246.49	271.66	282.34
	311.17	323.4	336.12
	370.44	385.00	441.00
	458.34	525.00	625.00
5	662.79	759.19	869.61	58.5	0.5~50kg.cm	90kg.cm	73%
	903.80	996.09	1035.25
	1140.97	1185.82	1232.44
	1306.91	1358.29	1411.69
	1555.85	1617.01	1680.59
	1852.20	1925.02	2205.00
	2291.69	2625.00	3125.00
The rated torque in the table is the product of dc motor rated torque,gearbox ratio and efficiency,rather than gearbox rated torque. The highest torque of gearbox refers to max stage short time torque.At rated torque, the gearbox generates reliable output performance, however, the life time shall subjectto the real working cycle condition in the site(for example, at the same rated torque, the slower the speed,the slower the wearing out and the longer the life time. Customized motor specs, shaft and encoder service is available.

Brushed Iron-core Motor Specs

Model	Nominal Voltage	No Load		Load at Max Eff			Output Power	Eff.	Stall		*DL1**
Model	V DC	RPM	mA	rpm	g.cm	mA	W	%	A	g.cm	mm
545	6	8700	1000	6800	190	3300	13.25	66	12.1	880	*φ3650.1**
	12	20500	1000	17200	380	8250	67.17	68	56.32	2920
	12	11000	500	9300	235	2870	22.58	65	16.46	1580
	24	5600	120	4600	161	510	7.71	62	2.9	1148
555	7.2	14500	1500	12700	390	9890	51.24	72	79.8	3608	*φ3657**
	12	6000	300	4600	303	1980	14.31	60	8.82	1677
	12	8400	800	6300	434	4280	27.91	55	16.11	2002
	24	6600	200	5800	242	830	14.37	73	5.62	1927
