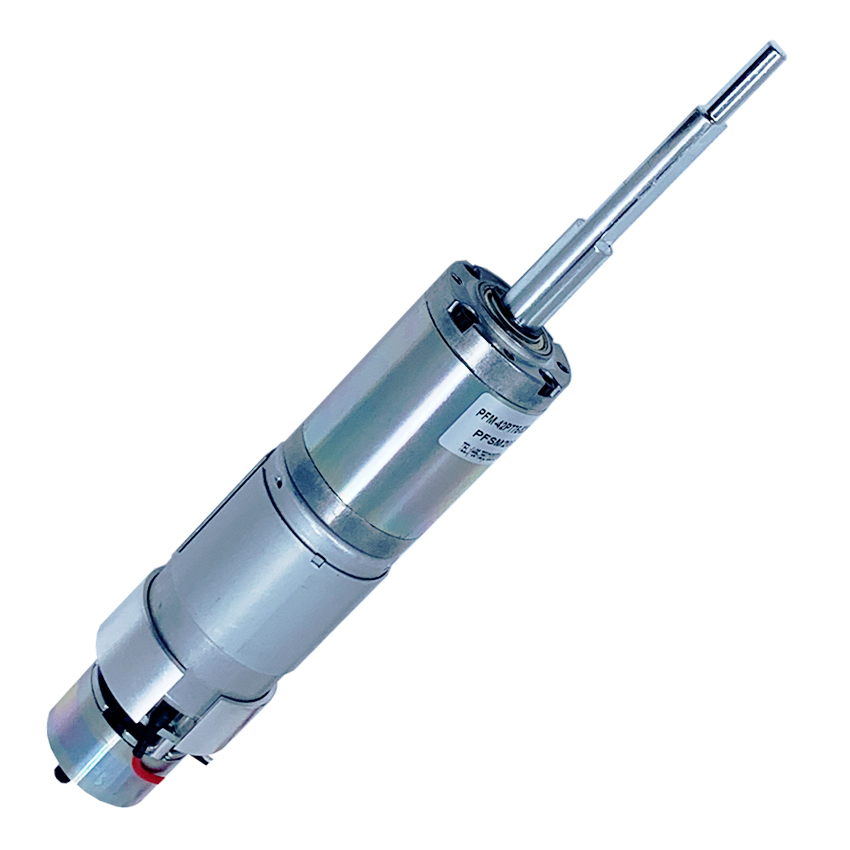

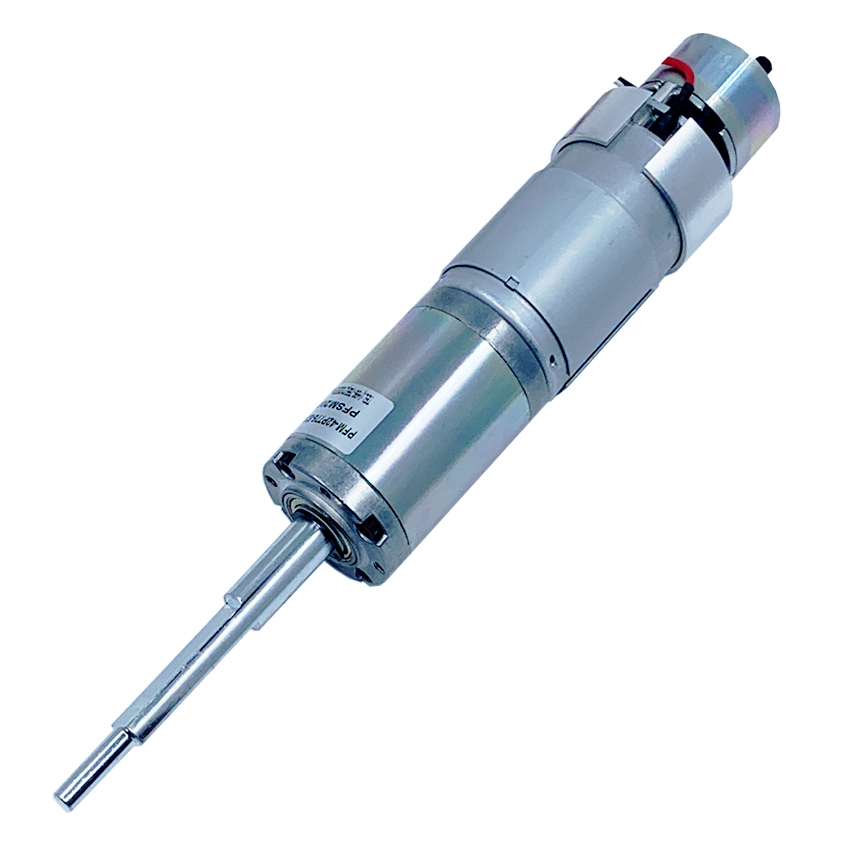

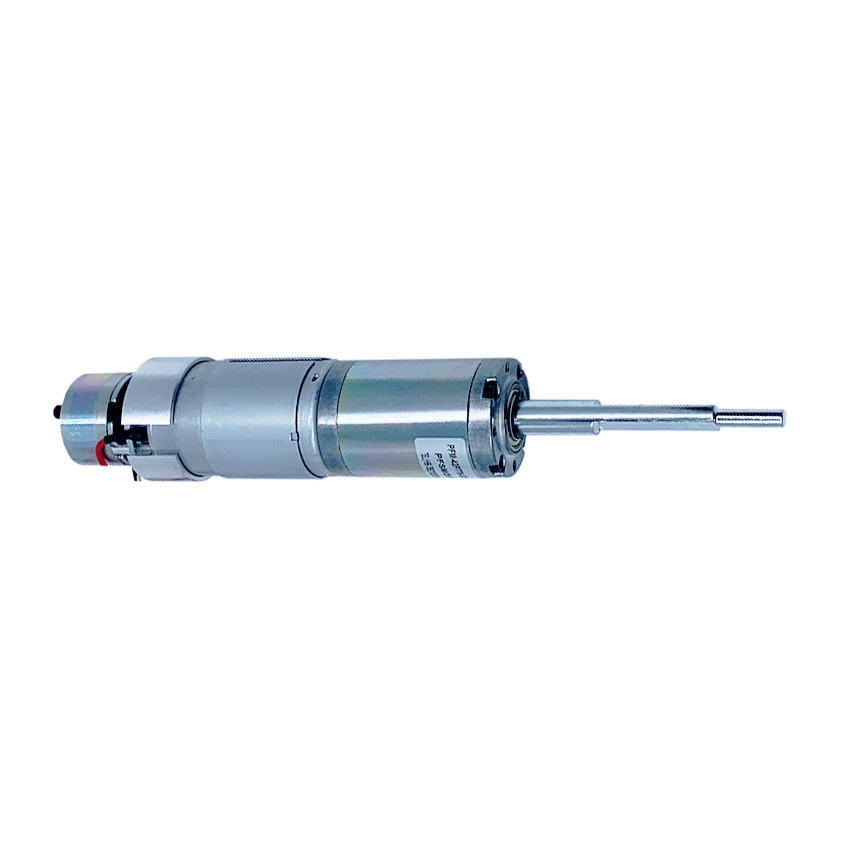

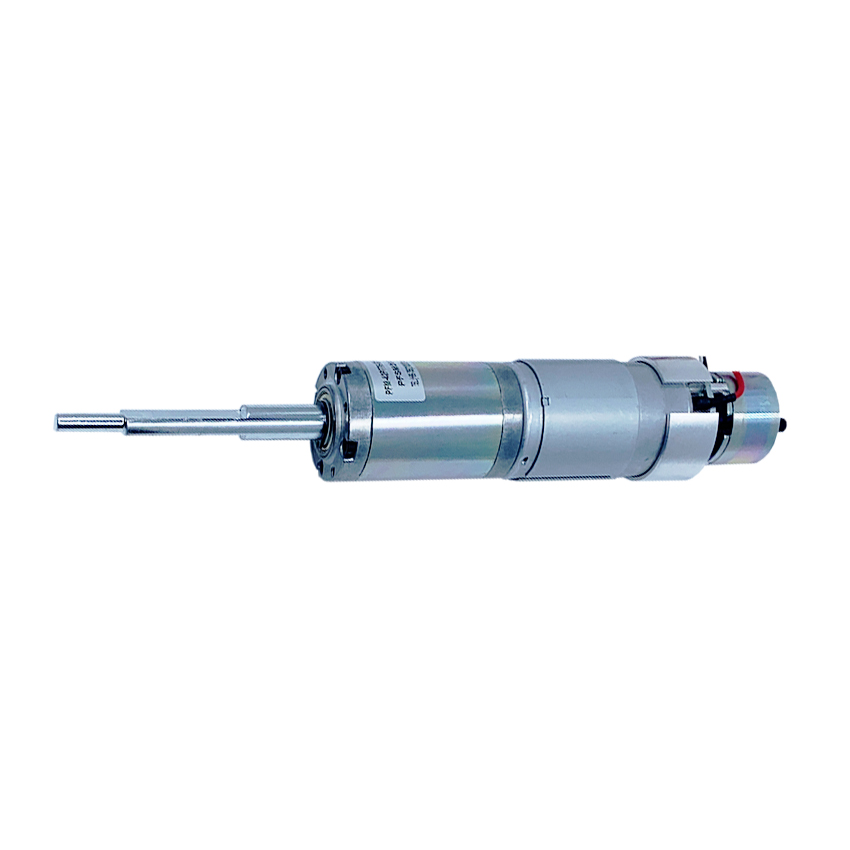

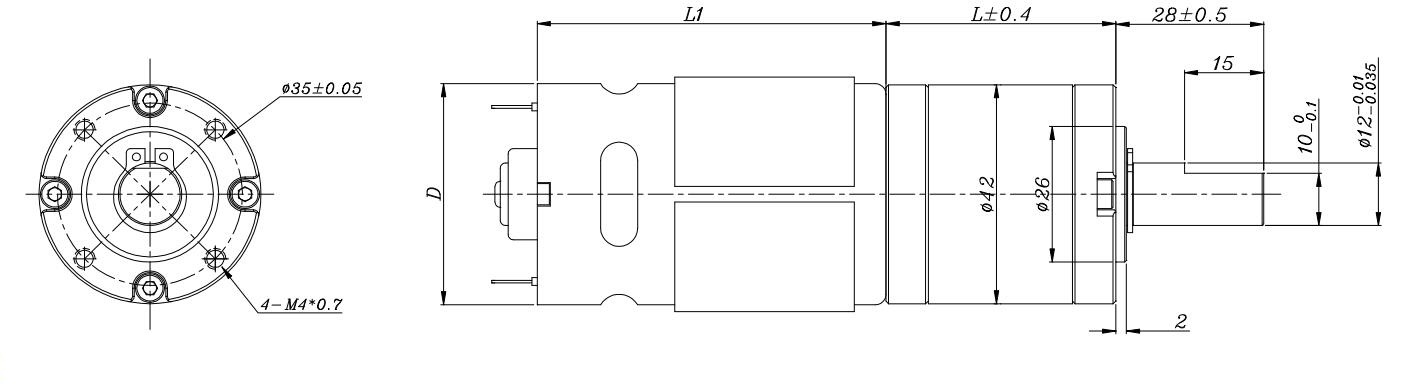

PFM-42P DC

Classification：Brushed DC Planetry Gear Motor

The rated torque in the table is the product of dc motor rated torque,gearbox ratio and efficiency, rather than gearbox rated torque. The highest torque of gearbox refers to max stage short time torque. At rated torque, the gearbox generates reliable output performance, however, the life time shall subject to the real working cycle condition in the site(for example, at the same rated torque, the slower the speed, the slower the wearing out and the longer the life time.

Customized motor specs, shaft and encoder service is available.

Consult

National Service Hotline：

0755-21000751

Gearbox
Motor Page

General Technical Parameters of Gearbox

No.:	ITEM	Material & Processing Technology
1	Ring Gear	S45C,Power Sintered
2	Pinion	S45C
3	Planet Carrier	Power Sintered
4	Planet Gear	Power Sintered
5	Output Shaft	S45C
6	Install Flange	Zinc Alloy
7	Connection Plate	Zinc Alloy
8	Gear Kind	Spur Gear
9	Type of Box	NGW Planetery Gearbox
10	Diameter	φ42mm
11	Modulus	M=0.6
12	Stages Available	1.2.3.4
13	Bearing Type	Sleeve, Ball Bearing
14	Max Radial Force	≤300N
15	Max Axial Force	≤150N
16	Axial Play	0.3mm Max
17	Radial Play（10mm from Flange）	0.05 Max
18	No Load Backlash	≤2.0°
19	Operation Temperature Range	-20℃~80℃（Can be Customized）
20	Operation Relative Humidity	20%RH~90%RH
21	Protection Level	IP54(Without Motor）
Note: Gearbox can be customized according to the requirements

Reduction Ratio

Stage	Ratio（X：1）			Length	Rated Torque	Short time Torque	Efficiency Max.
1	3.67	4.2	5.00	33.5	0.5~5kg.cm	20kg.cm	94%
2	13.44	15.40	17.64	43.5	0.5~25kg.cm	60kg.cm	88%
2	18.33	21.00	25.00	43.5	0.5~25kg.cm	60kg.cm	88%
3	49.30	56.47	64.68	53.5	0.5~80kg.cm	150kg.cm	83%
	67.72	74.09	77.00
	88.20	91.67	105.00
	125.00
4	180.76	207.05	237.16	63.5	0.5~120kg.cm	200kg.cm	78%
	246.49	271.66	282.34
	311.17	323.4	336.12
	370.44	385.00	441.00
	458.34	525.00	625.00
The rated torque in the table is the product of dc motor rated torque,gearbox ratio and efficiency,rather than gearbox rated torque. The highest torque of gearbox refers to max stage short time torque.At rated torque, the gearbox generates reliable output performance, however, the life time shall subjectto the real working cycle condition in the site(for example, at the same rated torque, the slower the speed,the slower the wearing out and the longer the life time. Customized motor specs, shaft and encoder service is available.

Brushed Iron-core Motor Specs

Model	Nominal Voltage	No Load		Load at Max Eff			Output Power	Eff.	Stall		*DL1**
Model	V DC	RPM	mA	rpm	g.cm	mA	W	%	A	g.cm	mm
755	6	19000	4000	16800	477	19200	82.7	72	112	3490	*φ4459**
	12	7500	750	6300	529	4280	34.6	69	22.5	3120
	18	23000	3500	19570	1346	20210	270.5	75.3	104	8276
	24	5200	300	4715	363	940	17.6	78.6	8.2	3530
775	12	9700	1800	8400	605	5980	52.8	73.4	56.9	6075	*φ4466**
	18	21000	3300	18900	1336	18550	259.4	79	130.4	11170
	24	7000	500	5860	620	2190	37.3	72	14	4519
	36	21500	1750	18618	1446	11200	276.5	71	71.15	10659
