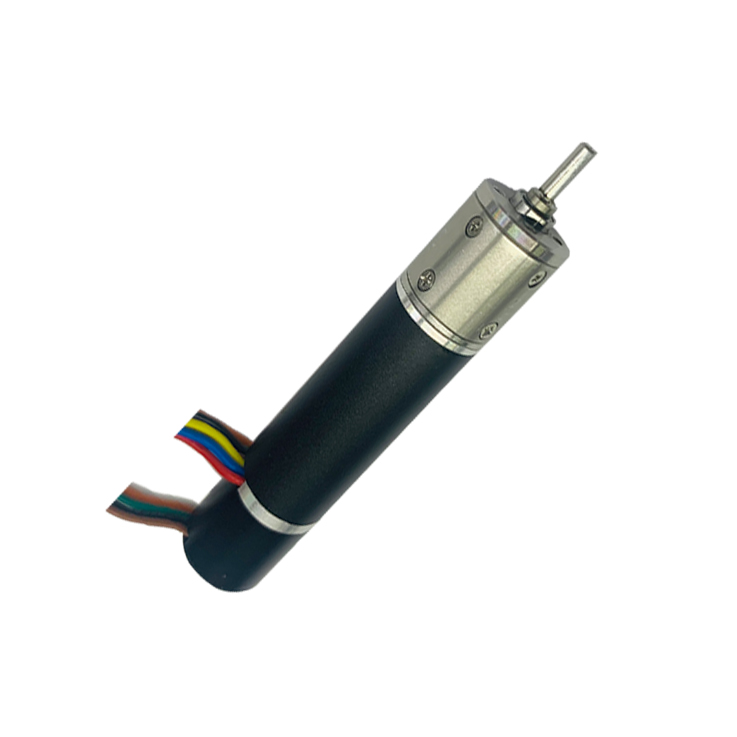

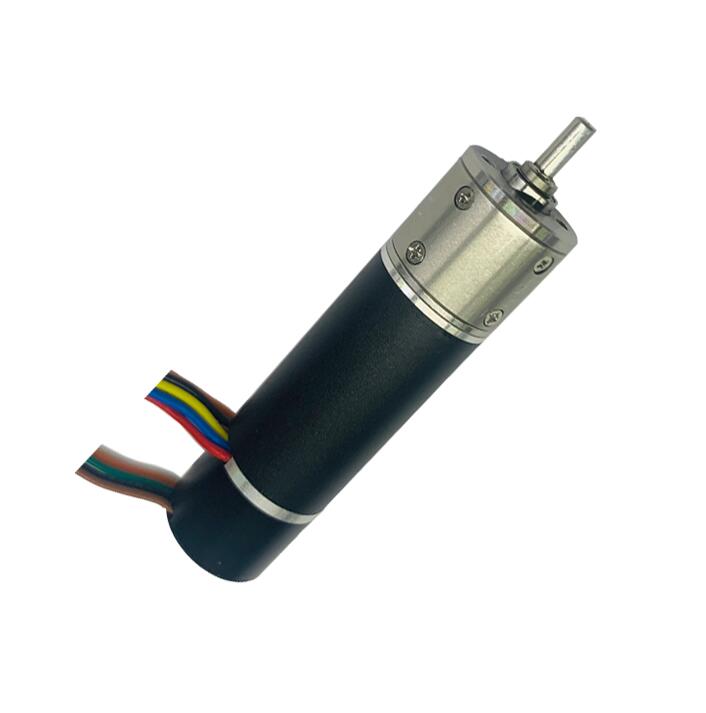

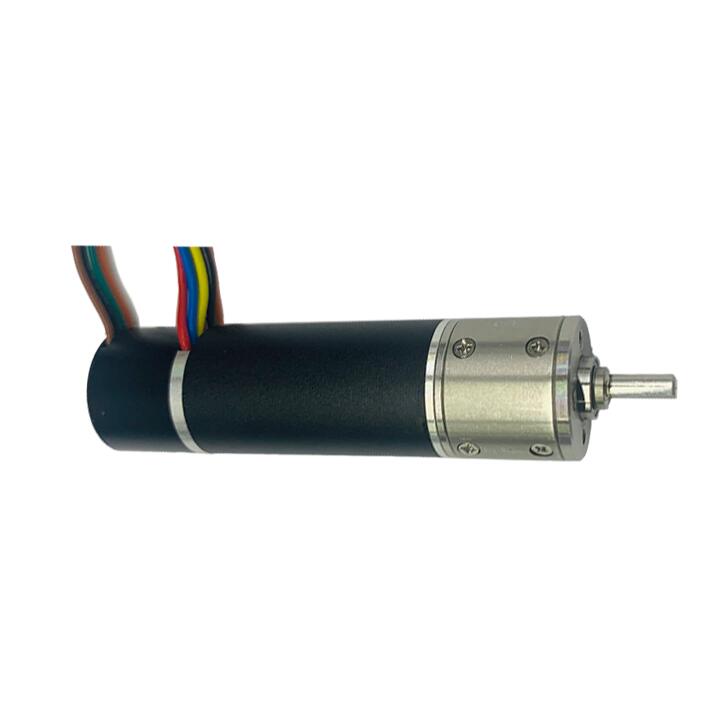

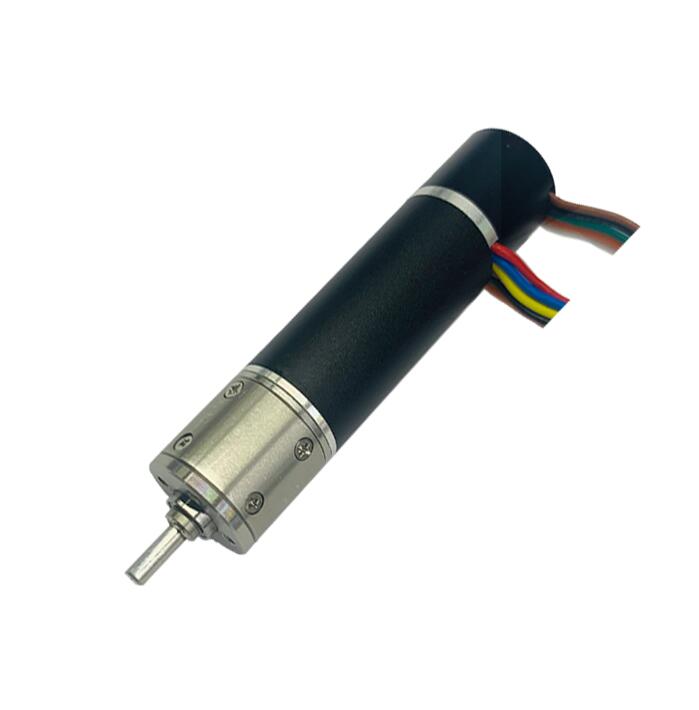

PFM-16HP CB

Classification：BLDC Coreless Planetary Gear Motor

The rated torque in the table is the product of dc motor rated torque,gearbox ratio and efficiency, rather than gearbox rated torque. The highest torque of gearbox refers to max stage short time torque. At rated torque, the gearbox generates reliable output performance, however, the life time shall subject to the real working cycle condition in the site(for example, at the same rated torque, the slower the speed, the slower the wearing out and the longer the life time.

Customized motor specs, shaft and encoder service is available.

Consult

National Service Hotline：

0755-21000751

Gearbox
Motor Page

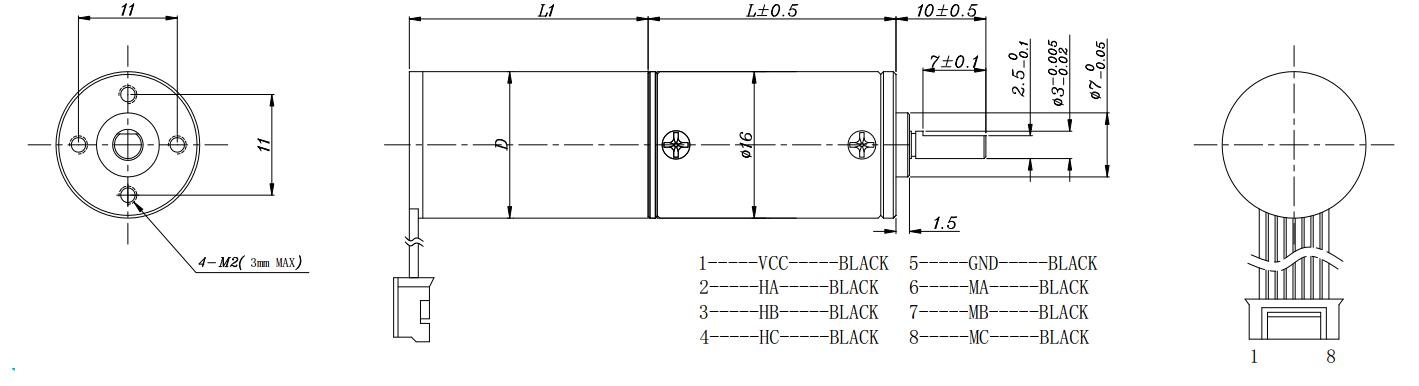

General Technical Parameters of Gearbox

No.:	ITEM	Material & Processing Technology
1	Ring Gear	S45C/SUS303
2	Pinion	SUS416
3	Planet Carrier	Power Sintered
4	Planet Gear	SUS416
5	Output Shaft	SUS416
6	Install Flange	Aluminium Alloy/ SUS304
7	Connection Plate	Aluminium Alloy/ SUS304
8	Gear Kind	Spur Gear
9	Type of Box	NGW Planetery Gearbox
10	Diameter	φ16mm
11	Modulus	M=0.3
12	Stages Available	1.2.3.4.5
13	Bearing Type	Sleeve, Ball Bearing
14	Max Radial Force	≤30N
15	Max Axial Force	≤10N
16	Axial Play	0.3mm Max
17	Radial Play（10mm from Flange）	0.05 Max
18	No Load Backlash	≤2.0°
19	Operation Temperature Range	-20℃~80℃（Can be Customized）
20	Operation Relative Humidity	20%RH~90%RH
21	Protection Level	IP54(Without Motor）
Note: Gearbox can be customized according to the requirements

Reduction Ratio

Stage	Ratio（X：1）			Length	Rated Torque	Short time Torque	Efficiency Max.
1	3.75	4.67		15.2	0.5kg.cm	2kg.cm	94%
2	14.06	17.5	21.78	18.9	1kg.cm	3kg.cm	88%
3	52.73	65.62	81.66	22.6	2kg.cm	5kg.cm	83%
	101.63	157.46
4	197.75	246.09	306.04	26.3	3kg.cm	8kg.cm	78%
	381.09	474.24
5	741.58	922.84	1148.40	30.0	5kg.cm	10kg.cm	73%
	1429.11	1778.42	2213.11
The rated torque in the table is the product of dc motor rated torque,gearbox ratio and efficiency,rather than gearbox rated torque. The highest torque of gearbox refers to max stage short time torque.At rated torque, the gearbox generates reliable output performance, however, the life time shall subjectto the real working cycle condition in the site(for example, at the same rated torque, the slower the speed,the slower the wearing out and the longer the life time. Customized motor specs, shaft and encoder service is available.

Coreless Brushless Motor Specs

Model	Nominal Voltage	No Load		Load at Max Eff			Output Power	Eff.	Stall		*DL1**
Model	V DC	RPM	mA	rpm	g.cm	mA	W	%	A	g.cm	mm
CB1632	12	19800	85	16800	30	600	5.26	73	3.9	230	*φ1632**
	12	13840	60	10500	32	450	3.56	67	1.8	160
	18	26870	77	24500	22	420	5.63	76	4.8	310
	24	16060	35	13135	31	250	4.20	71	1.4	200
CB1640	12	30900	150	28000	61	1800	17.80	82	17.6	640	*φ1640**
	12	19320	90	15850	71	1300	11.80	78	6.8	390
	18	15200	55	12085	66	650	8.4	75	2.95	320
	24	11690	38	8300	69	400	6.00	68	1.3	240
