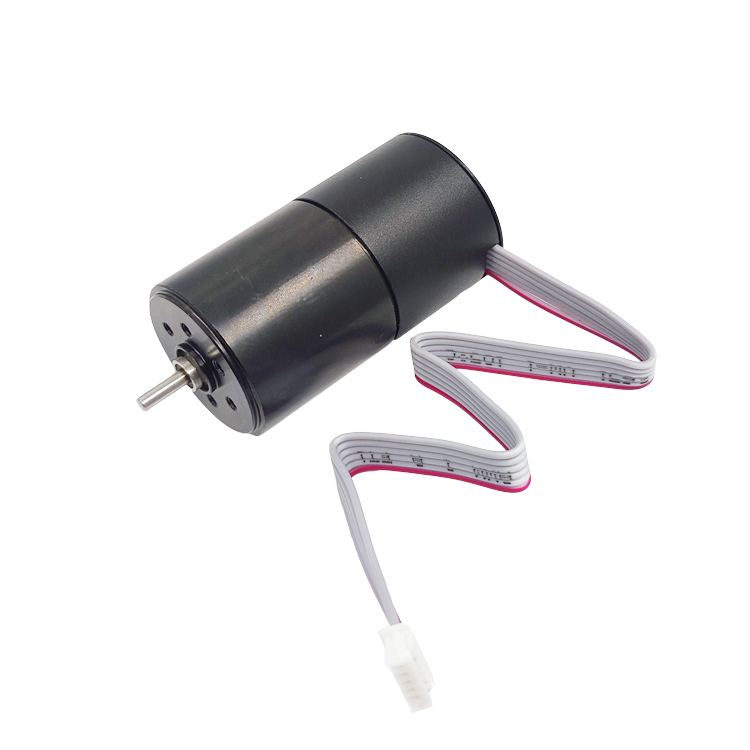

EN22

Classification：Encoder

ABZ.SPI.PWM.I2C.UVW output are available.

Customized 1~4096PPR/Turn TTL output

Customzied 2~6 Channels

UVW model support Max 16 pair of poles

Index pulse width: 90°

A.B channels shift ：90°

Max speed 25000rpm

Working temperature range: -40~125°
